Imports of high manganese steel spiral blade screw conveyor

Name: Imports of high manganese steel spiral blade screw conveyor
Brand: hongyuan
Price: 650 USD

Brand Name : hongyuan

Model Number : XL-100-6

Certification : ISO

Place of Origin : Xinxiang China(mainland)

MOQ : 1set

Price : US$650-950 per set

Payment Terms : T/T or By Alibaba Trade Assurance:100% full amount in advance

Supply Ability : Machine in stock

Delivery Time : Within 2 days after getting the money

Packaging Details : In standard fumigation ply wooden box

Name : Imports of high manganese steel spiral blade screw conveyor

Length : Customized length is supported(6meters,8meters,10meters is available)

Pipe diameter : 100mm

Loading Capacity : 5-8T/H

Motor phase-power : Single phase -220V-3kw

Installation : Vehicle mounted

Structure : Steel screw blade inside

Conveying height : 3-4m

Application : Wheat/Soybean/Corn/Rice/Sorghum/Plastic/Resin/Rice and other grains

Usage : Single transportation task independently

Contact Now

Imports of high manganese steel spiral blade screw conveyor

Products Application

Imports of high manganese steel spiral blade screw conveyor is one kind of bulk grain conveyor adopt the motor power for truck loading and grain elevator purpose. With the feature of small cubage and easy to carry, it is universally used by the family farm. It is mainly applied for collecting of wheat, corn, paddy, cereal, and any other similar granules like dry sand, cement, sawdust etc. With single phase motor power, it can load the large capacity with low energy consumption and easy to use at home. This is adopt the latest advance starving varnish paint technology.

Imports of high manganese steel spiral blade screw conveyor

Working performance

Imports of high manganese steel spiral blade screw conveyor is easy to carry and operated and is one convenient portable grain inhaling suction equipment.

Imports of high manganese steel spiral blade screw conveyor

Specifications

Model No.	Length (Meters)	Pipe diameter	Loading Capacity(t/h)	Motor phase-power(kw)	Installation	Structure	Conveying height
XL-100-6	6	100mm	5-8	Single phase -220V-3kw	Vehicle mounted	Steel screw blade inside	3-4m
XL-100-8	8	100mm	5-8	Single phase -220V-3kw	Vehicle mounted	Steel screw blade inside	3-4m
XL-100-10	10	100mm	5-8	Single phase -220V-3kw	Vehicle mounted	Steel screw blade inside	3-4m
XL-100-12	12	100mm	5-8	Single phase -220V-3kw	Vehicle mounted	Steel screw blade inside	3-4m
XL-160-6	6	160mm	15-20	Three phase -220V-4kw	Vehicle mounted	Steel screw blade inside	3-4m
XL-160-8	8	160mm	15-20	Three phase -220V-4kw	Vehicle mounted	Steel screw blade inside	3-4m
XL-160-10	10	160mm	15-20	Three phase -220V-4kw	Vehicle mounted	Steel screw blade inside	3-4m
XL-160-12	12	160mm	15-20	Three phase -220V-4kw	Vehicle mounted	Steel screw blade inside	3-4m

Notice:

Imports of high manganese steel spiral blade screw conveyor

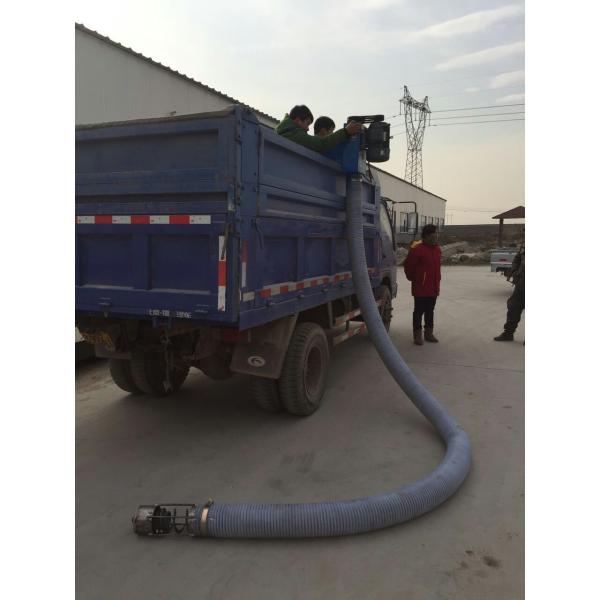

Detailed Images

Imports of high manganese steel spiral blade screw conveyor

Pilot Running

According to the packing list by piece count, check the parts are complete after opened the box.
When commissioning, the tube should try to keep nature, try to make the pipe smooth turning and to prevent wear pipe.
When debugging, flexible screw conveyor machine should use the international 4 square power cord.
When Installing the V-belt of motor, it should set the small wheel first, then set the big wheel.
Don’t racing the engine while the machine working, to prevent wear the pipe.
In the process of flexible screw conveyor machine installed to the truck, the machine head should be outward installation and then use the screw bolt to fix it.
If the material clogging while working should immediately shut down, clean up and then restart.
If the blade damaged in the process of using, you can use welding machine to weld.

Special Notes

Please do not let the machine running without loading; Please do let the machine running with loading; Please do not let the machine do the idling running.

Packing & Delivery

Packing in Plywooden Box

Packing Size:1200*1200*500mm

Gross Weight: 180kgs

Imports of high manganese steel spiral blade screw conveyor
